Spare parts
Spare parts
The AXF offer is completed by a timely spare parts service. The accurate maintenance of our braking systems and the replacement of spare parts are essential for the correct operation and road safety of the products supplied.
All AXF spare parts kits are created according to the “All-in-one” philosophy, with each kit containing all the items necessary for maintenance of the parts to be replaced. AXF recommends periodic maintenance be carried out by a qualified professional and with original spare parts.
| BRAKE | CUSCINETTO BEARING | P.C.D. | COD. | NOTE |
|---|---|---|---|---|
| 135X30 | CONICAL | 58X98/4-M12 | KT58F07246 | * |
| 160X35 | CONICAL | 56X100/4-M12 | KT58F07249 | ** |
| 58X98/4-M12 | KT58F07248 | ** | ||
| COMPACT | 56X100/4-M12 | KT58F05823 | STND | |
| 58X98/4-M12 | KT58F06372 | STND | ||
| 66X112/5-M12 | KT58F10730 | STND | ||
| 200X35 | CONICAL | 56X100/4-M12 | KT58F07239 | ** |
| 58X98/4-M12 | KT58F07240 | ** | ||
| 66X112/5-M12 | KT58F06410 | ** | ||
| 200X50 | CONICAL | 56X100/4-M12 | KT58F07243 | ** |
| 58X98/4-M12 | KT58F07241 | ** | ||
| 66X112/5-M12 | KT58F07242 | ** | ||
| 93X140/5-M14 | KT58F09238 | ** | ||
| 99X139,7/6-M12 | KT58F10813 | ** | ||
| COMPACT | 58X98/4-M12 | KT58F10725 | STND | |
| 66X112/5-M12 | KT58F10726 | STND | ||
| 93X140/5-M14 | KT58F10633 | STND | ||
| 93X140/5-M14 | KT58F10728 | STND | ||
| 99X139,7/6-M12 | KT58F10727 | STND | ||
| 250X40 | CONICAL | 93X140/5-M14 | KT58F07244 | STND |
| 114,3X165,1/5-M16 | KT58F10763 | STND | ||
| 99X139,7/6-M12 | KT58F11017 | STND | ||
| 250X60 | CONICAL | 99X139,7/6-M12 | KT58F10764 | STND |
| 114,3X165,1/5-M16 | KT58F10714 | STND | ||
| 160X205/6-M18 | KT58F10809 | STND | ||
| 305X80 | CONICAL | 160X205/6-M18 | KT58F07252 | STND |
* OBSOLETO, DISPONIBILE FINO AD ESAURIMENTO SCORTE / OBSOLETE, UNTIL STOCKS RUN OUT
** DISPONIBILE SU RICHIESTA / AVAILABLE ON REQUEST
STND STANDARD
| CODICE COD. | CARREGGIATA - TRACK [B] | |
| MIN. | MAX. | |
| KT27F04591 | 0 | 1450 |
| KT27F04553 | 1451 | 1700 |
| KT27F04592 | 1701 | 2000 |
| KT27F04593 | 2001 | 2400 |
| KT27F04395 | 2400 | / |
| CODICE COD. | CARREGGIATA - TRACK [B] | |
| MIN. | MAX. | |
| KT27F04594 | 0 | 1450 |
| KT27F04754 | 1451 | 1700 |
| KT27F04755 | 1701 | 2000 |
| KT27F04812 | 2001 | 2400 |
| KT27F04823 | 2401 | / |

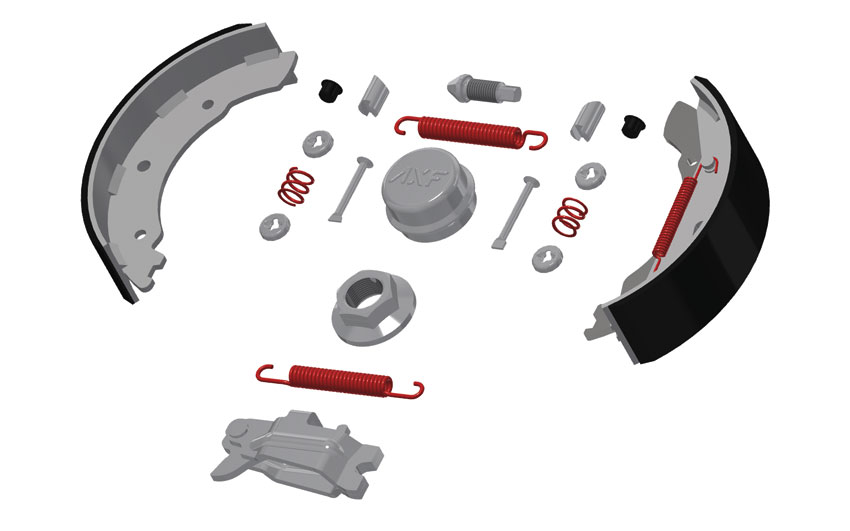

| COD. | NAME | NOTE | DOWNLOAD |
|---|---|---|---|
| KTMFF07624 | KIT MASSE FRENO 160X35 | STND |  |
| KTMFF07625 | KIT MASSE FRENO 200X35 | |
|
| KTMFF07626 | KIT MASSE FRENO 200X50 | STND | |
| KTMFF07627 | KIT MASSE FRENO 250X40 | STND | |
| KTMFF07628 | KIT MASSE FRENO 250X60 | STND | |
| KTMFF05964 | KIT MASSE FRENO 305X80 | STND | |
STND STANDARD
| LOAD | VER. | TYPE | COD. | NAME |
|---|---|---|---|---|
| TUTTI | 2704A03689 | KIT CAVO DI SICUREZZA D4 | ||
1000 KG 1500 KG | "V" SHAPE COUPLING SQUARE COUPLING | 8300F05562 | PROTETTORE IN GOMMA TQ/TV/TV3 | |
| RR10003460 | 2610A04505 | AMMORTIZZATORE 650/1000KG RF2 | ||
| RV10007568 | 2615A07825 | AMMORTIZZATORE 900/1500KG RF3B | ||
| RR15003222 | 7315A05561 | LEVA FR.A MANO 1500KG RF3B STD | ||
| 1800 KG 2800 KG | RV18001395 RR28002100 RV28002099 | "V" SHAPE COUPLING SQUARE COUPLING | 8300F07503 | PROTETTORE IN GOMMA TQ2/TV2 |
| 8300F00986 | PROTETTORE IN GOMMA | |||
| 2618C04036 | AMMORTIZZATORE 950/1800KG RF4 | |||
| 2628C05740 | AMMORTIZZATORE 1500/2800KG RF5 | |||
| 7328A00854 | LEVA FR.A MANO 2800KG RF4/5 |
